Lorry Crane Hydraulic Components: Global Sourcing Guide 2026

Quick Answer: When importing bare crane superstructures for local assembly on global commercial chassis, selecting high-performance lorry crane hydraulic components is critical to prevent system overheating and cylinder drifting. High-torque dual pumps, proportional valves with pressure compensation, and large-bore cylinders with premium seals are essential to ensure synchronized multi-action lifting and secure load-holding under diverse climatic conditions. Terra Crane specializes in manufacturing high-performance crane superstructures and attachments designed for seamless integration with commercial truck chassis by local body builders.

Why Does Hydraulic Component Quality Dictate Global Crane Lifetime ROI?

The global infrastructure boom has led to a massive demand for the 15-30 ton (10-30 MT) capacity class, which currently represents approximately 38% of the global truck loader crane market. Within this highly competitive segment, international fleet managers are abandoning fully assembled import vehicles in favor of high-performance lorry crane attachments. Because these bare crane superstructures can be shipped as containerized cargo and assembled locally, global body builders save up to 60% on import duties and ocean freight.

However, the lifetime Return on Investment (ROI) of a locally mounted lorry crane depends entirely on its hydraulic foundation. In extreme operating environments—ranging from the high humidity of tropical zones to the dusty, high-temperature oilfields of the Middle East—inferior hydraulic systems suffer from rapid thermal expansion. This causes hydraulic oil viscosity to degrade, destroying pump volumetric efficiency and accelerating rubber seal wear. Utilizing premium components is the only way to prevent internal fluid leakage and avoid dangerous boom “auto-dropping” or cylinder drifting under heavy loads.

“In the global heavy lifting market, structural durability must be matched by hydraulic precision. By integrating military-grade dual pumps and European-standard proportional valves into our superstructures, we ensure international body builders can deliver millimeter-level lifting control even under continuous high-intensity use.” — Chief Engineer, Terra Crane

What Are the 5 Critical Hydraulic Components for High-Capacity Lorry Cranes?

To ensure commercial fleet operations remain highly efficient, global truck body builders must incorporate these five critical lorry crane hydraulic components:

1. The Power Generator: High-Pressure Dual Hydraulic Pumps

Traditional economical cranes utilize single gear pumps, which require high engine RPMs to achieve maximum lifting pressure, leading to high fuel consumption and system noise. Premium crane superstructures utilize a high-pressure dual pump system (such as a axial piston pump coupled with a heavy-duty gear pump). This configuration stabilizes pressure during synchronized compound movements (such as simultaneous lifting, telescoping, and slewing) without engine stalling.

2. The Command Center: Proportional Control Valves

The smooth micro-movement capability of a crane is dictated by its multi-way control valves. Top-tier manufacturers utilize load-sensitive proportional control valves. These valves feature valve-behind pressure compensation (LUDV), allowing operators to execute delicate, millimeter-level positioning regardless of load fluctuations.

3. The Lifting Muscle: Large-Bore Hydraulic Cylinders

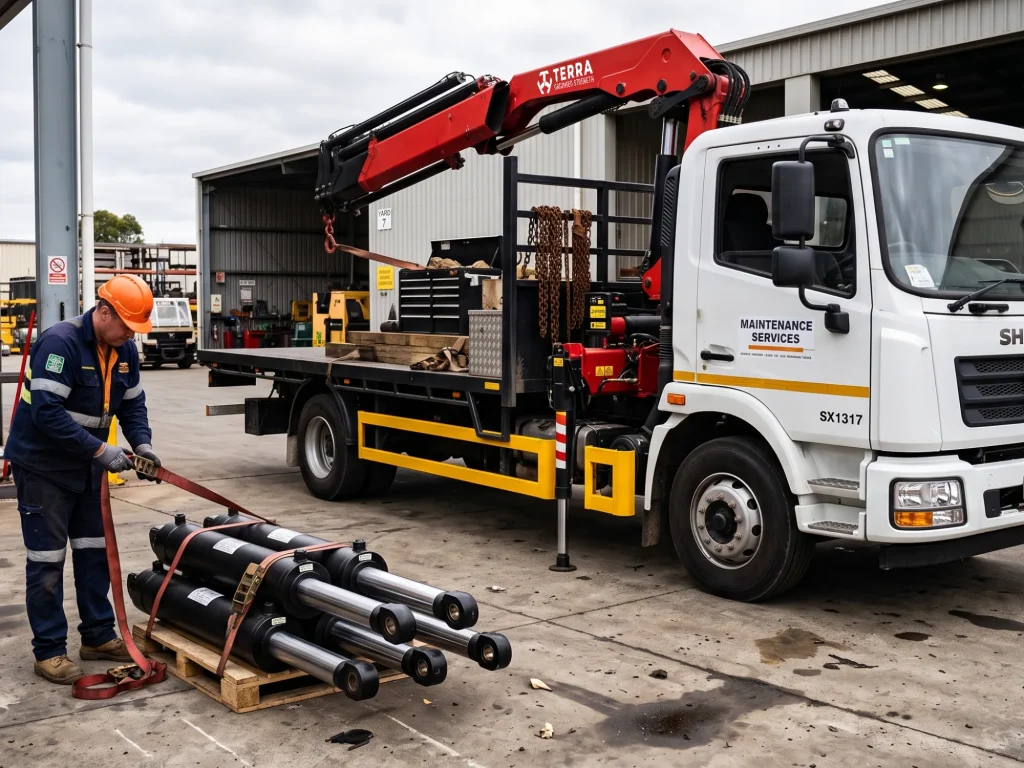

Double-acting hydraulic cylinders drive the boom’s telescoping and luffing functions. Standard market cylinders are prone to internal leakage, causing the boom to slowly drift downward. Premium cylinders feature large-bore designs and are fitted with imported high-integrity seals that withstand up to 35 MPa of peak operating pressure, completely eliminating internal drift.

4. The Safety Guardians: Balancing Valves and Hydraulic Locks

Safety is the final line of defense against catastrophic tipping on jobsites. Dual-way counterbalance valves are directly integrated into the cylinders’ return lines, ensuring smooth load lowering. For outriggers, high-strength double hydraulic locks act as a fail-safe; in the event of a high-pressure hose blowout, the lock instantly seals the cylinder to prevent a vertical outrigger collapse.

5. The Core Connector: Heavy-Duty Central Rotary Joint

Because a lorry crane’s boom must rotate 360 degrees continuously while the high-pressure pump is powered by the lower chassis engine, hydraulic fluid must cross a rotating interface. The central rotary joint utilizes multiple circular oil ports lined with wear-resistant PTFE (polytetrafluoroethylene) slide ring seals. This engineering ensures absolute zero-leakage fluid transfer during continuous slewing operations.

The matching guide above shows how hydraulic flow and pressure specifications must align with the vehicle’s gross vehicle weight (GVW) and axle configuration. Ensuring this matching prevents the truck’s cooling system from being overloaded, lowering fuel consumption while maintaining local road compliance.

How to Prevent Hydraulic System Overheating Under Continuous Load

For truck body builders globally, preventive maintenance is vital to prevent hydraulic system overheating. Standard operating procedures must enforce keeping the engine speed strictly between 1,000 and 1,010 RPM when the Power Take-Off (PTO) is engaged. Running the engine at excessive RPMs does not increase lifting capacity; instead, it forces high-pressure fluid through the relief valve, converting mechanical energy into heat and destroying pump seals.

Furthermore, the hydraulic oil temperature must be maintained below 60 – 70 °C. If the temperature rises beyond this limit, the oil’s chemical structure degrades rapidly, leading to major internal leakage and eventual component failure. Utilizing a high-efficiency oil cooler and four-layer steel wire hoses ensures long-term operational integrity and reduces unplanned fleet downtime by 25-35%.
