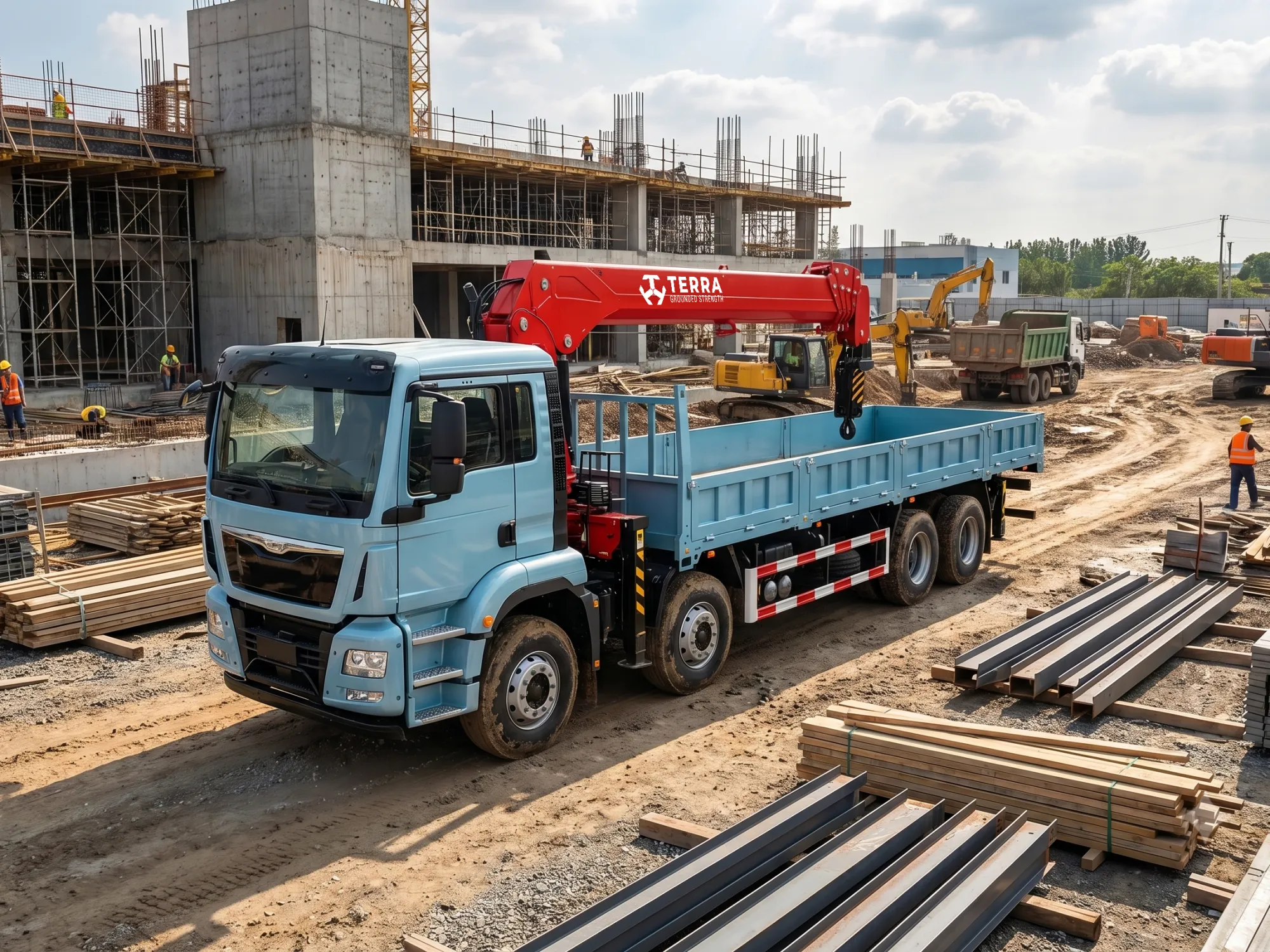

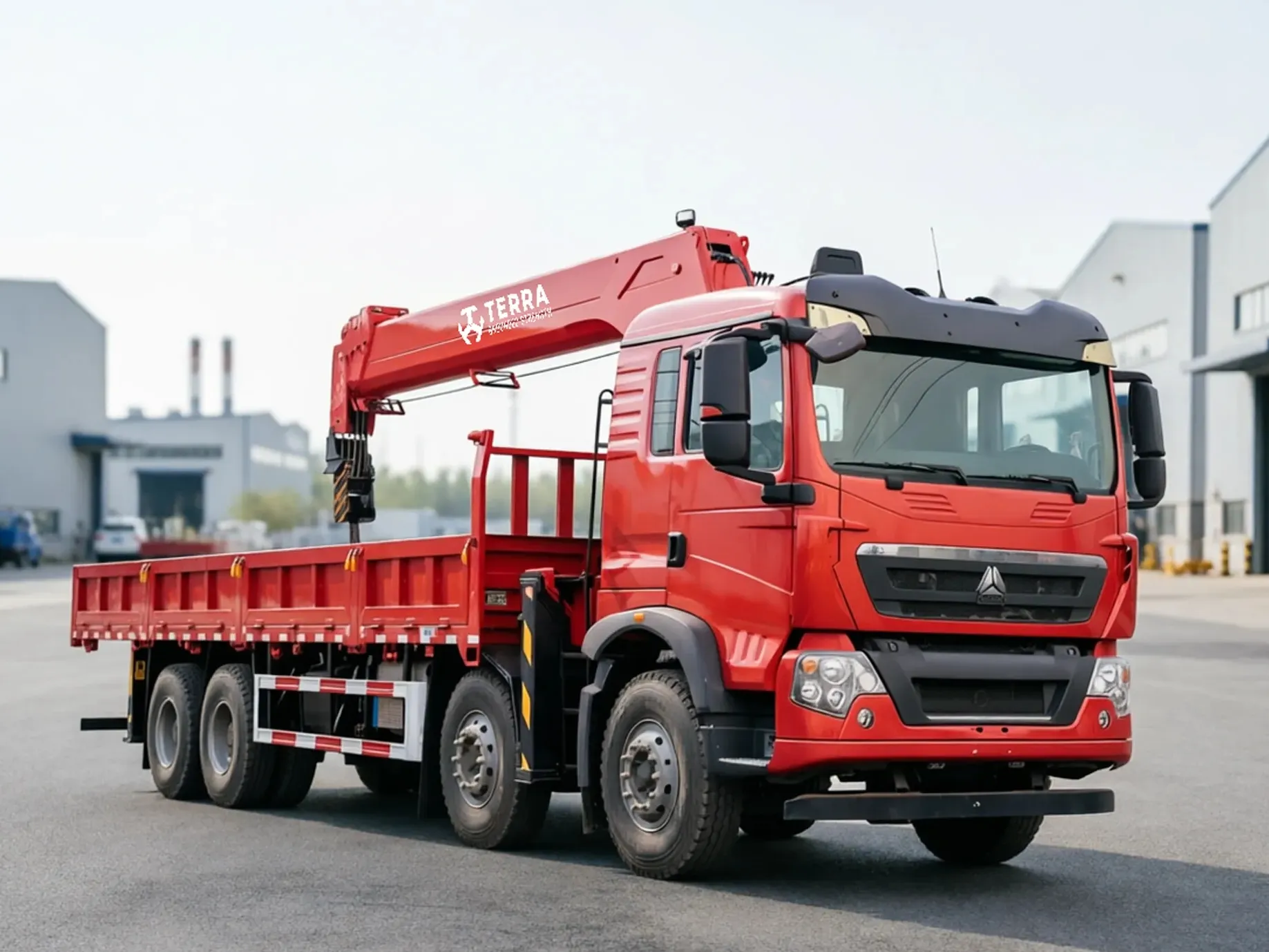

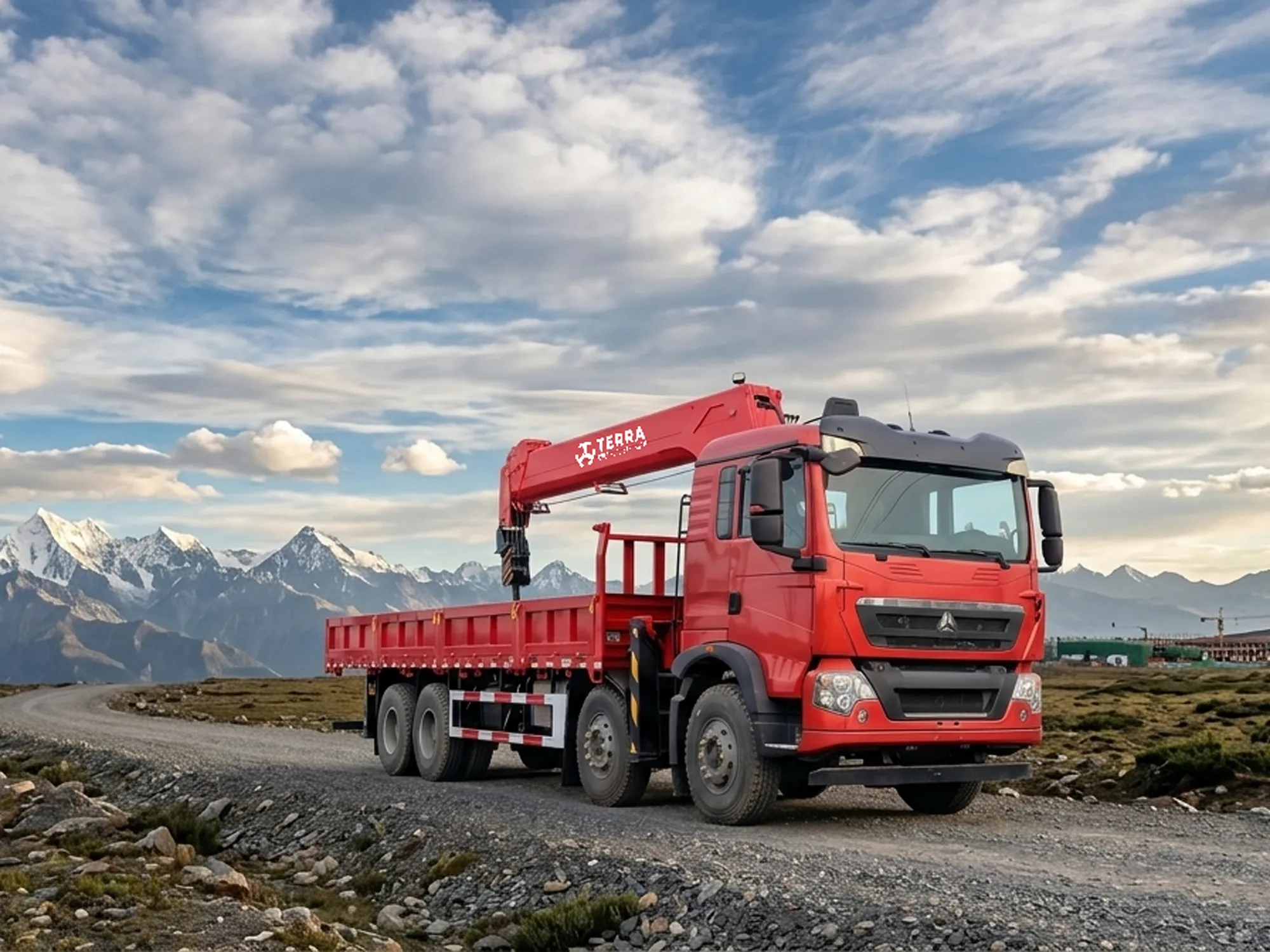

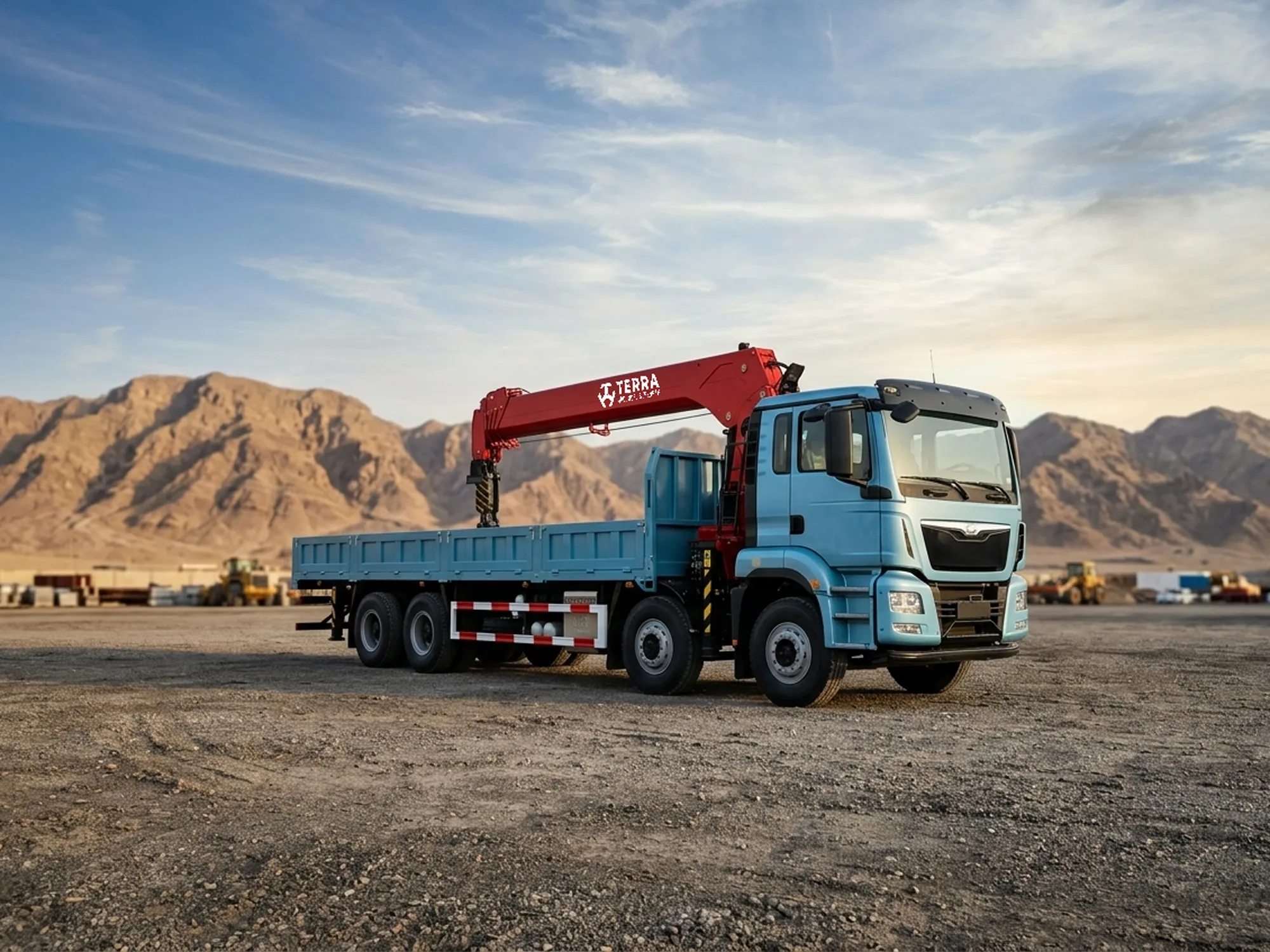

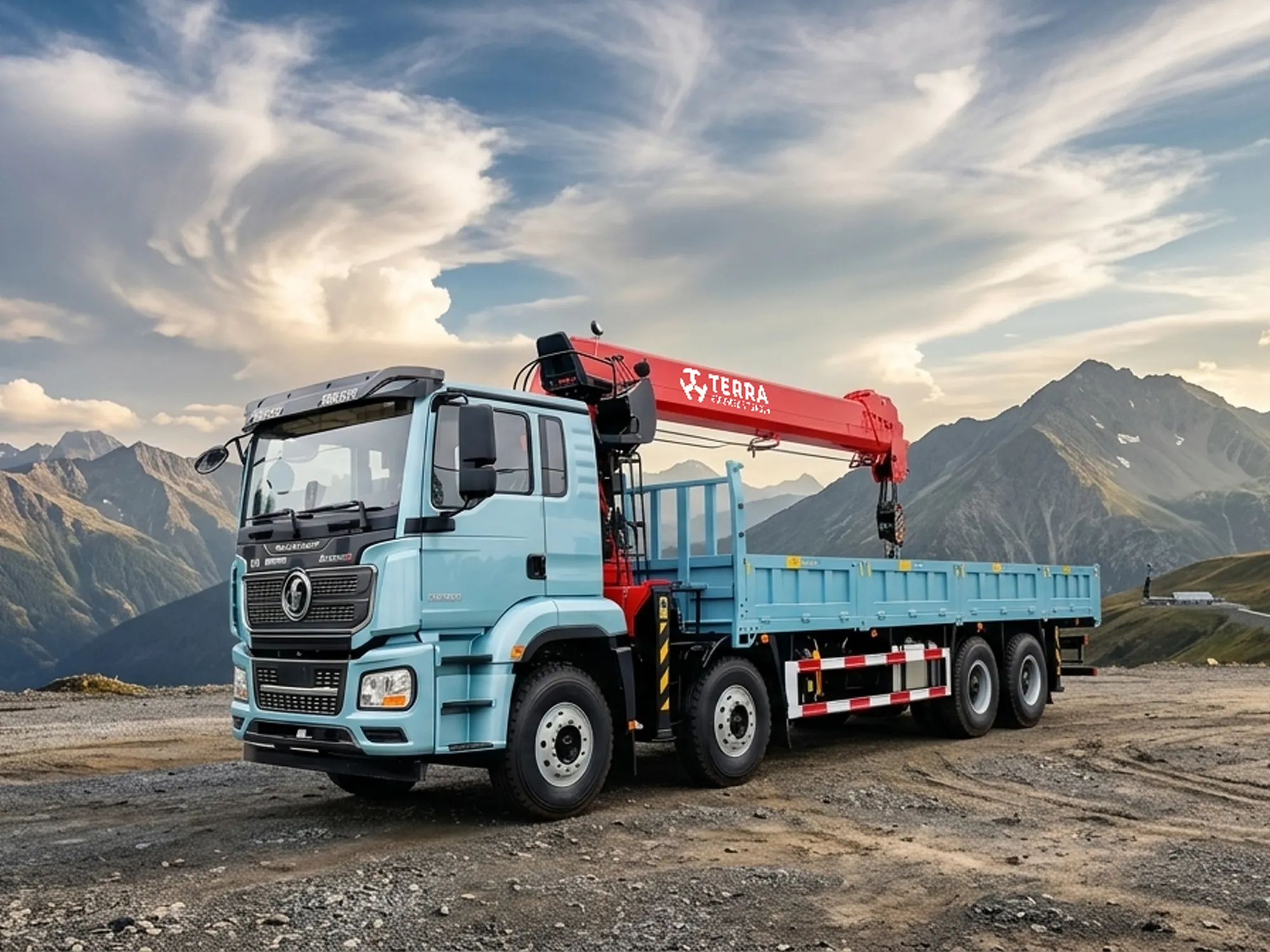

HEAVY-DUTY 14 TON LIFTING SOLUTION FOR GLOBAL PROJECTS
The Terra 14 ton stiff boom crane (model TS-3504) is a heavy-capacity powerhouse engineered for high-intensity lifting operations. As a premium 4-section telescopic lorry crane, it bridges the gap between medium-sized cranes and heavy mobile cranes, providing an exceptional working radius and millimeter-level control. Whether you are operating in Southeast Asia, the Middle East, North America, or South America, this 14t cargo crane (KMU) is the ultimate professional choice for large-scale infrastructure, mining, oil fields, and heavy logistics.
WHY CHOOSE THE TS-3504 HEAVY STIFF BOOM CRANE?
MAXIMIZED 4-SECTION REACH PERFORMANCE
The advanced 4-section hexagonal boom configuration ensures superior structural rigidity and a larger working envelope, drastically reducing structural deflection under maximum heavy-duty loads.
ULTRALIGHT HG70 HIGH-STRENGTH STEEL
Fabricated with premium HG70 high-tensile steel to dramatically minimize dead weight. This allows your heavy-duty commercial vehicle to retain a higher legal cargo payload capacity while maintaining a strict 14,000 kg lifting capacity.
DUAL-PUMP HYDRAULIC SYSTEM
Features a high-pressure dual-pump hydraulic system coupled with proportional control valves, ensuring smooth multi-action synchronization and high operational precision for fragile or dangerous heavy cargo.
ULTRA-WIDE HYDRAULIC STABILIZERS
Equipped with multi-stage, ultra-wide span hydraulic outriggers (both front and rear) to provide an unshakeable foundation and maximum roll stability during full-radius heavy lifting.
TECHNICAL DATA & PERFORMANCE SPECS
- Max Lifting Capacity: 14,000 kg @ 2.5 m
- Boom Configuration: 4-Section Telescopic Stiff Boom
- Max Working Radius: 15.8 m
- Max Lifting Height: 17.8 m
- Slew System: 360° Continuous Rotation with Dual Slewing Reducers
- Hydraulic Pump Flow: Dual-pump high flow configuration
- Certifications: CE & ISO 9001:2026 Compliant
FREQUENTLY ASKED QUESTIONS ABOUT 14 TON CRANES
What truck chassis GVW is required for a 14-ton stiff boom crane?
Due to the heavy lifting capacity, the Terra TS-3504 requires a heavy-duty tri-axle (6×4) or multi-axle (8×4) chassis with a minimum GVW of 25 tons to 31 tons. It integrates seamlessly with global brands like SHACMAN, VOLVO, ISUZU, and Mercedes-Benz.
Why is a stiff boom preferred over a knuckle boom for 14-ton operations?
For heavy industrial lifting, a 14 ton stiff boom crane offers a higher vertical reach, longer winch wire rope drop for deep-hole lifting (such as foundation work), and superior structural cost-efficiency for continuous high-altitude material handling.
